Hydraulic Cylinder m

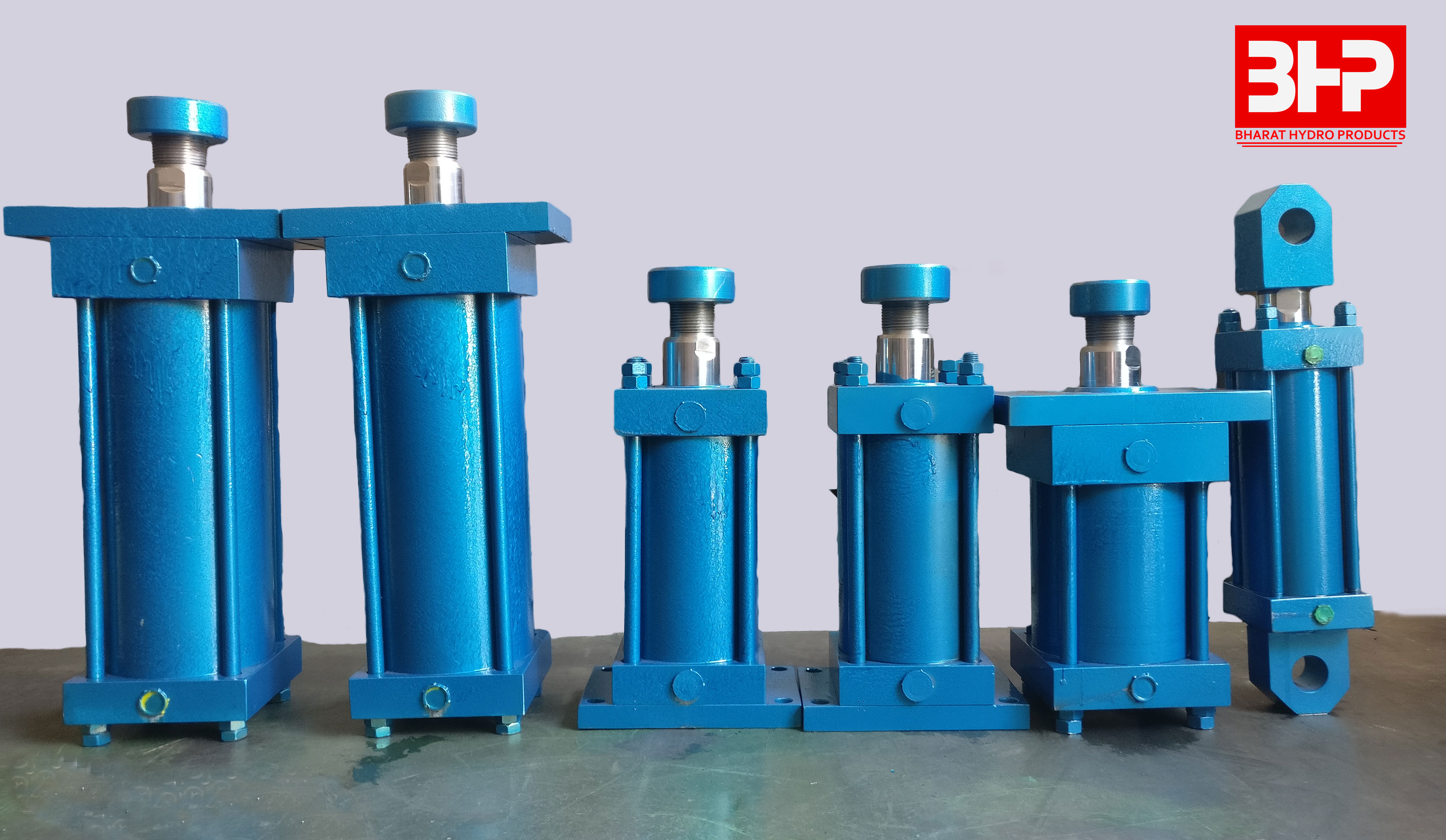

Hydraulic Cylinder manufactured in Bangalore: 1. Die Closing Hydraulic Cylinder Specification: Cylinder ID : 120dia Cylinder OD : 140dia Stroke Length : 140 stroke Piston Rod : 60dia piston rod Mounting : front flange mounted Cylinder Type : double acting Construction : tie-rod construction. Application : Used for closing of Die Quantity : 2 No.s 2. Core Rod Moving Hydraulic Cylinder Specification: Cylinder ID : 140dia Cylinder OD : 160dia Stroke Length : 280 stroke Piston Rod : 60dia piston rod Mounting : front flange mounted Cylinder Type : double acting Construction : tie-rod construction. Quantity : 2 No.s 3. Pin Lifting and Lowering Hydraulic Cylinder Specification: Cylinder ID : 140dia Cylinder OD : 160dia Stroke Length : 90 stroke Piston Rod : 60dia piston rod Mounting : front flange mounted Cylinder Type : double acting Construction : tie-rod construction. Quantity : 1 No. Application : Used for Lifting and lowering the Pin in the equipment for locking purpose. 4. Tilting Hydraulic Cylinder Specification: Cylinder ID : 80dia Cylinder OD : 95dia Stroke Length : 140 stroke Piston Rod : 50dia piston rod Mounting : Clevis mounted Cylinder Type : double acting Construction : tie-rod construction. Quantity : 1 No. Application : Used for Tilting the Equipment to the required angle. At Bharat Hydro Products: the hydraulic cylinders are crafted based on requirement of the customer, based on the requirement of the application the cylinders are design to perform the respective task as per the expectations. Experienced labors help in forming the designed hydraulic cylinder as per requirement where the customization varies from 1 ton to 500 ton. A hydraulic cylinder is designed with utmost care making sure of the load it can handle, the pressure at which it has to operate making sure all safety factors are taken into consideration, if anything goes wrong the effect could be catastrophic and fatal hence it is no easy task, with an experience of over 25 years in the field of hydraulics the knowledge of what not to be done is very well updated and maintained. Our other products Include 1) Hydraulic Scissor Lift 2) Hydraulic Power Pack 3) Hydraulic Press 4) Hydraulic Block Tilter 5) Industrial and PLC Automation 6) Customizable Hydraulic equipments All these are manufactured in Bangalore
  • 2018-04-20T07:15:05
